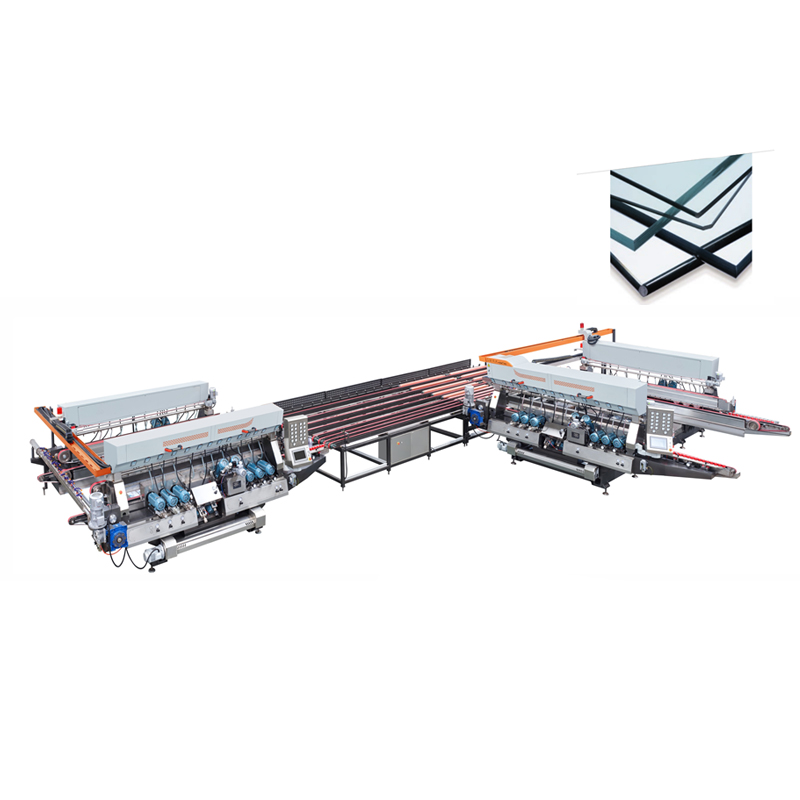

SM2015 Glass Straight-line Double Edging Processing line
Product origin :MADE IN CHINA
Delivery time :30DAYS AFTER DEPOSIT
Supply capacity :30SETS/MONTH
Packing method :IRON PALLET AND FOAM PACKAGING
Payment item :T/T OR L/C AT SIGHT
Quality standard :SGS,CE
Guarantee :GUARANTEE 14 MONTHS AFTER DELIVERY
1. The processing speed is 1-15m/min.
2. PLC control system to set the processing parameters through the monitor interface to complete the processing at one time.
3. The main transmission adopted timing belt (Italian branded) and is equipped with variable frequency motor speed control.
4. Safety feature such as safety rope protection mechanism can be find in the machine to protect the operator and maintenance personnel.
- The main gear box shaft sleeve adopts through sleeve structure, using high precision roller bearings, stable and reliable operation, long service life, reduce maintenance cost. Servo motor transmission is also available for option.
1. Standard Model: High performance ABB motors first one adopts 3kw. Inside of the sliding part adopt the bronze nut work with adjustment screw rod to reduce the gap, more flexible and durable.
2. Mechanical (belt) transmission: with 4200rpm mechanical transmission by belt driven. Spindles shaft rotation at 4200rpm/min. The shaft can tolerant up to 12000rpm/min maximum, however, only using 1/3 of total speed capacity. The processing speed is upon 15m/min with polishing. Grinding ability has improved
3. Mechanical (belt) transmission with Servo driven In-feed arrangement: Fully automatic wheel adjustment. Precise calculation between wheel and material. Avoiding uneven grinding caused by human error. Stepping into the next automation level.
1. Motor configuration:
- Conveyor motor: variable frequency motor 2.2KW
- Roller conveyor motor 1: variable frequency motor 1.5KW
- Roller conveyor motor 2: variable frequency motor 1.5KW
2. Technical parameters:
Minimum size of the transfer glass:
350mm * 350mm
Maximum size of the transfer glass
2500mm * 1500mm
Thickness of the transfer glass
8100mm * 2900mm * 1000mm
Remark: When the size of the transfer glass changes, the external dimensions change accordingly.
