SM20 glass double polishing machinery

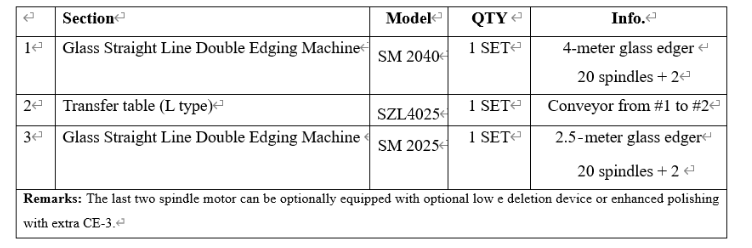

General information of SM20 glass double polishing machinery
The glass double side polisher is beginning on 1#f glass edger machine, and the transfer table is automatically turnedto the long side of the 2# machine glass edger machine. The processing speed is 1-15m/min.←
PLC control system to set the processing parameters through the monitor interface to complete the processingat one time. The stable and solid base structure contribute to precise and fast width adjustment system. The glass double side polisher maintrans mission adopted timing belt (ltalian branded) and is equipped with variable frequency motor speed controlUnder modular design concept, the double straight edge machine can be equipped with enhanced polishing and lowe deletion devices. The polishing spindles can be selected pneumatic polishing or automatic feeding polish whichimproving the polishing quality and reduce the labor intensity of workers. Safety feature such as safety ropeprotection mechanism can be find in the machine to protect the operator and maintenance personnel. The whole linehas compact structure. stable and reliable performance, high degree of automation, and high production eficiencyIt is the best supporting machine for large-scale furmiture and architectural decoration glass processing. It can bepaired with production lines such as lamination, printing and tempering
- The main gear box shaft sleeve adopts through sleeve structure, using high precision roller bearings, stable and reliable operation, long service life, reduce maintenance cost. Servo motor transmission is also available for option.
1. Standard Model: High performance ABB motors first one adopts 3kw. Inside of the sliding part adopt the bronze nut work with adjustment screw rod to reduce the gap, more flexible and durable.
2. Mechanical (belt) transmission: with 4200rpm mechanical transmission by belt driven. Spindles shaft rotation at 4200rpm/min. The shaft can tolerant up to 12000rpm/min maximum, however, only using 1/3 of total speed capacity. The processing speed is upon 15m/min with polishing. Grinding ability has improved
3. Mechanical (belt) transmission with Servo driven In-feed arrangement: Fully automatic wheel adjustment. Precise calculation between wheel and material. Avoiding uneven grinding caused by human error. Stepping into the next automation level.
1. SM20 Automatic double Floating Polish Edger Motor configuration:
- Conveyor motor: variable frequency motor 2.2KW
- Roller conveyor motor 1: variable frequency motor 1.5KW
- Roller conveyor motor 2: variable frequency motor 1.5KW
2. SM20 Automatic double Floating Polish Edger Technical parameters:
1 | Minimum size of the transfer glass: | 350mm * 350mm |
2 | Maximum size of the transfer glass | 2500mm * 1500mm |
3 | Thickness of the transfer glass | 3-25mm |
4 | Total power | 5.2KW |
5 | Dimensions | 8100mm * 2900mm * 1000mm |
Remark: When the size of the transfer glass changes, the external dimensions change accordingly. | ||
