This machine has 5motors(No.1-No.5) which can process glass bottom edge and front arris(0-60 degree), NO.6&7 motors for front arris and No.8&9 motors for rear arris All process is finished at one processing. To make flat edging/polishing, No.1-No.5 motors need to stay at ZERO degree . To make miter edge, No.1-No.5 motors can be adjused to the requested degree. Option: This machine use BEARING CONVEYOR SYSTEM. It is suitable for small glass (40mmx40mm) and heavy glass(4mx4m) processing. The machine adopt PLC control and operator interface(Touch screen). The machine has 2 working modes, manual and fully automatic working mode. In automatic mode, the parameters of glass can be input through Touch screen. In manual mode, machine can be operated through the switch on the working panel.
Read MoreSame thickness of glass sheet can be process continually. The brightness of finished surface will be almost the same as glass itself. The processing speed is adjustable with a step-less motor which offers a wide range of speed selection. Input and output conveyor adopt timing belt which can improve the transmission precision.
Read MoreAdopt reinforcement design to prevent beam deformation with 15mm steel plate. Disassemble water tank, maintenance friendly. Grinding head water tank is stamped and formed, without welding, without cracks, and the surface is smooth. 35mm chain adopted on conveyor pad section. Lubrication tube distributes fully on the conveyor system, swaying system and spindles carriage. Encoder and switch located away from the water sources, prolong lifespan. ABB specialize water proof motor. Auto stirrer equipped with cerium tank.
Read MoreInput and output conveyor adopt timing belt which can improve the transmission precision.The grinding wheels are indirectly connected to the motor by a belt to reduce vibration.This machine features high efficiency and precision, stable quality, easy operation and low wear.All motors using ABB brand.
Read MoreAdvantage: 1. beams and motor carriages is used by enhance high-quality castings, strong and stable body. 2. Base, uprights used by welding parts with tempering treatment , strong and stable body. 3. Senior special energy-saving motors Canoon brand, advanced turbine gearbox; 4. Schneider brand electric appliance. 5. 2.2KW big range speed governor, JIALI worm gear box, transmission more durable.
Read MoreAdvantage: Chain transfer, strong square tube frame can load heavy duty glass to process. The diamond wheel and resin wheel adopts with Chinese brand; the bottom and arris polishing wheel with import 10S40, the Polishing effect is similar to mirror surface; NO.9 can be adopts with wool felt wheel working with cerium oxide or CE 3 for polishing flat edge This machine can accord customer’s requirement to design. Grinding motor can be working with Abb Grinding motors with extra cost The machine with three kinds of control mode: Manual/ digital display/ PLC Control +touch screen+pneumatic polishing The machine with CE and export standard.
Read MoreU Shape Vertical Straight Edging Line is consisted with 2 units of edging machine,1 unit of turning robot arms.Design on the base of straight line edging machine. With the robot arms,the efficiency of single edging machine can be improved deeply.Compare to the vertical straight line edging machineproduction line,the U shape production line can save much space for factory production.
Read More1. PLC control system to set the processing parameters through the monitor interface to complete the processing at one time. 2. The polishing spindles can be selected pneumatic polishing or automatic feeding polish which improving the polishing quality and reduce the labor intensity of workers.
Read MoreGlass Washing Machine is a special multifunctional washing machine (horizontal) for flat glass cleaning.QX series design by 3 pairs of brushes (φ150mm),it can washing hard Low-E glass, coated glass and solar coated glass,when washing Low-E coated glass, the two hard brushes can be lifted up,unbreakable the coated surface.
Read Moreit can be connect with double edging grinidng machines. and also can connect with all horizontal glass machines

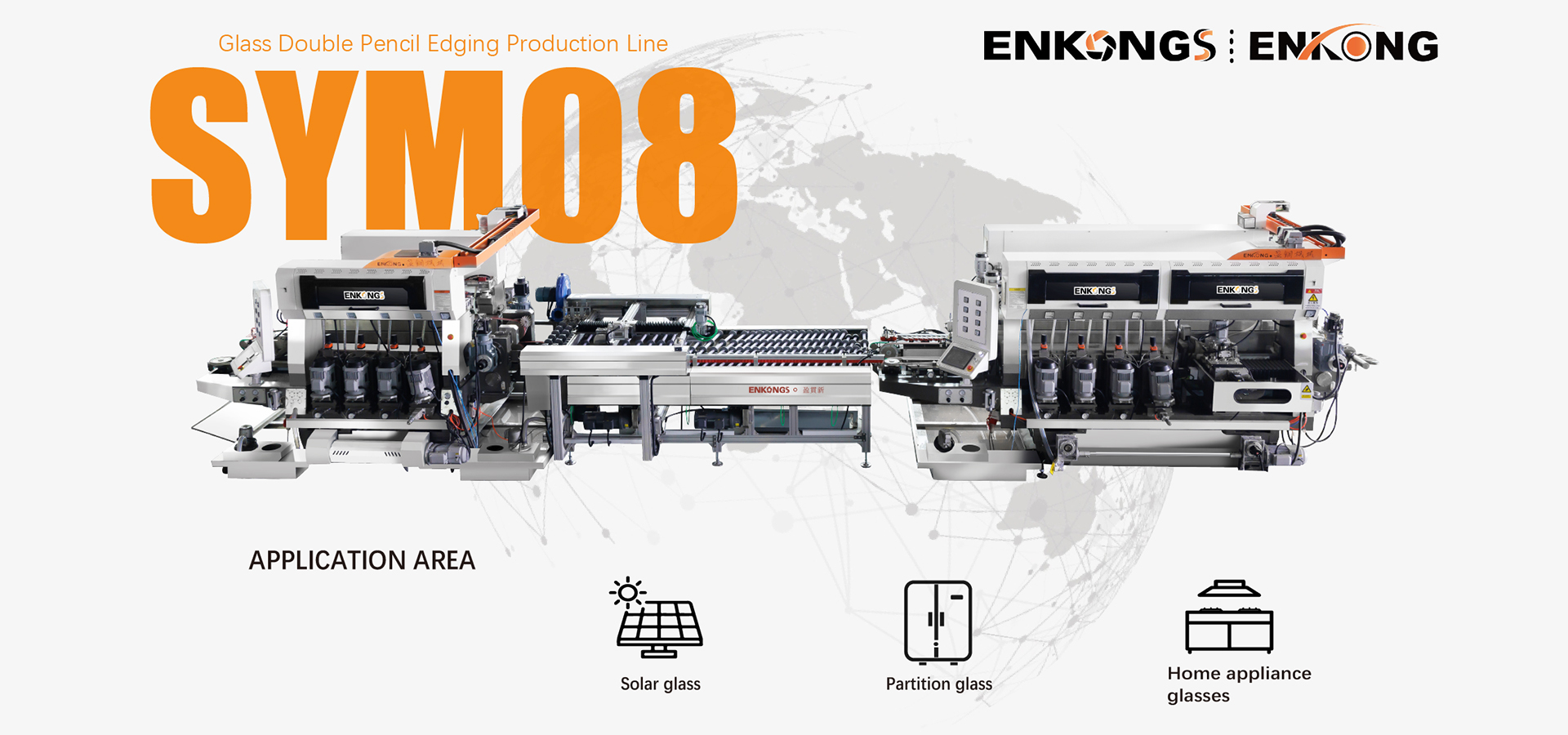

Read More3-12 mm Glass Double C-edge grinding machine, it professional double pencil (C)edger with furniture glass with polishing.

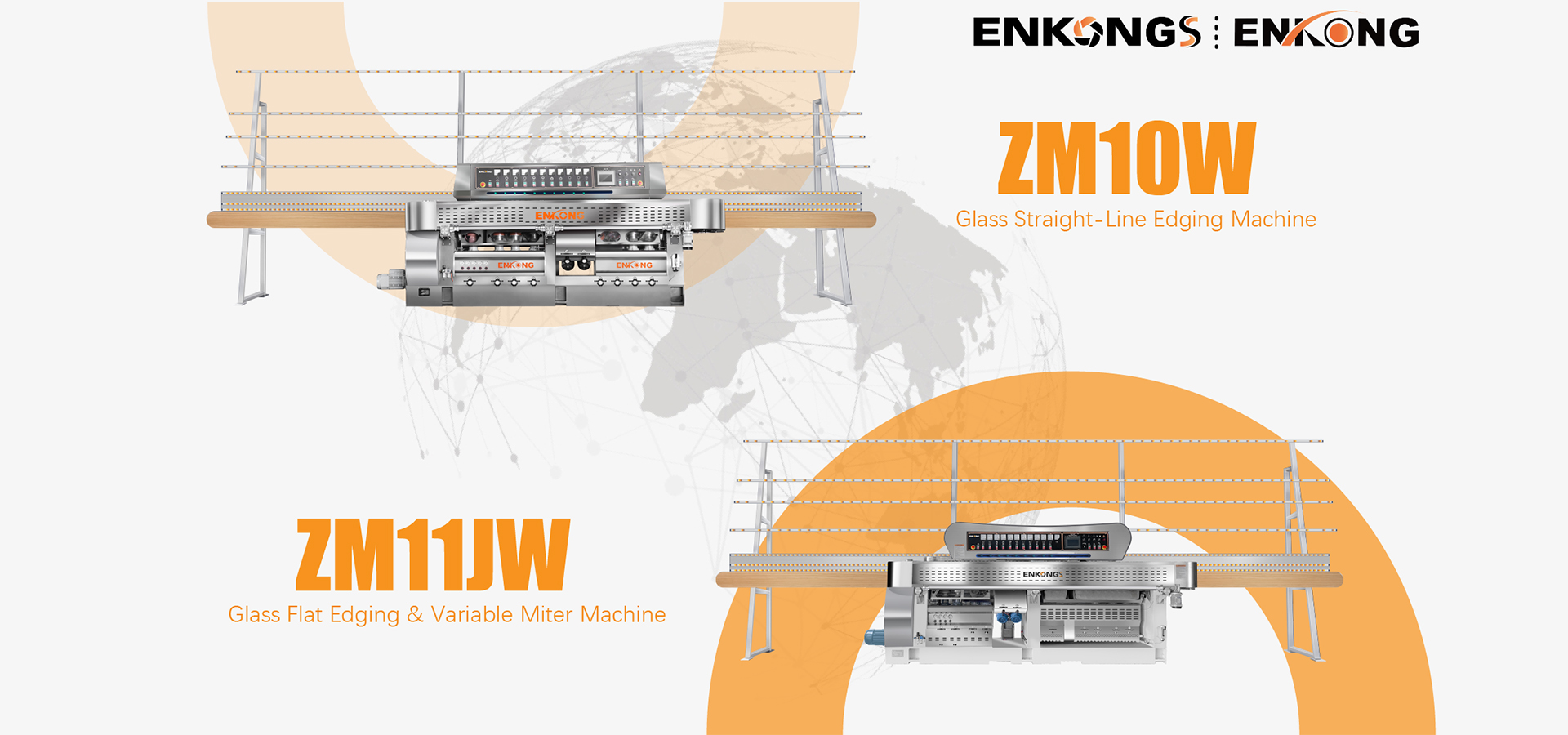

Read MoreZM10W edging machine is suitable for grinding architectural glass, decorative glass, furniture glass, home appliance glass, It is a necessary machine for glass deep processing factory. It is right machine for heavy &thicker glasses sheet.
