- SM10 Series L glass double seaming machine Line:
Section | Model | QTY | Info. | |
1 | Glass Straight Line Double Edging Machine | SM 1025 | 1 SET | 2.5 -meter glass edger 5 spindles + 1 |
2 | Transfer table (L type) | SZL2515 | 1 SET | Conveyor from #1 to #2 |
3 | Glass Straight Line Double Edging Machine | SM 1015 | 1 SET | 1.5-meter glass edger 5 spindles + 1 |
Remarks: The SM10 glass processing machine last two spindle motor can be optionally equipped with optional low e deletion device or enhanced polishing with extra CE-3. | ||||
SM10 glass processing machine Basic Configuration:
1. Ball screw（Width adjustment）: Taiwan HINWIN/TBI/PMI
2. Linear guide: Taiwan HINWIN/TBI/PMI
3. base, movable & fixed bridge, conveyor plate: high-quality steel plate welding after heat treatment finishing
4. Water tank material: Stainless steel SUS201
5.Timing belt: Megadyne,Italy
6. Operation: PLC + touch screen control. Fully automatic PLC computer control, touch screen user friendly interface, easy to operate.
SM10 Glass double edging line Electrical Parts :
Item | Manufacture | Origin |
Low-Voltage apparatus | Schneider | France |
button | Takahashi | CHINA |
Inverter | Delta | Taiwan, China |
transformer | erbian | China |
Encoder | Koyo | Japan |
PLC | Delta / Wing Hong | Taiwan, China |
touch screen | Delta | Taiwan, China |
Servo system | Delta / Wing Hong/ | Taiwan, China |

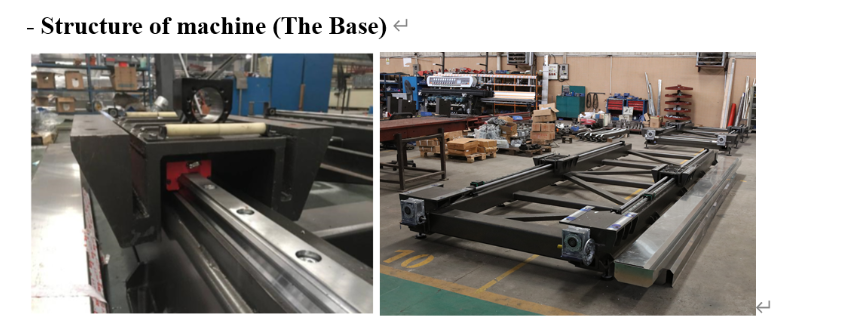

SM10 glass grinding machine W shape support bracket: The bracket of movable site system uses “W" frame design to increase the accuracyand stability, also it can extend the lifetime of the linear rack significantly, reducing the intervals of downtime..
