SM10 glass straight line double edging machine Basic Configuration:
1. Ball screw（Width adjustment）: Taiwan HINWIN/TBI/PMI
2. Linear guide: Taiwan HINWIN/TBI/PMI
3. base, movable & fixed bridge, conveyor plate: high-quality steel plate welding after heat treatment finishing
4. Water tank material: Stainless steel SUS201
5.Timing belt: Megadyne,Italy
6. Operation: PLC + touch screen control. Fully automatic PLC computer control, touch screen user friendly interface, easy to operate.
SM10 glass straight line double edging machine Electrical Parts:
Item | Manufacture | Origin |
Low-Voltage apparatus | Schneider | France |
button | Takahashi | CHINA |
Inverter | Delta | Taiwan, China |
transformer | erbian | China |
Encoder | Koyo | Japan |
PLC | Delta / Wing Hong | Taiwan, China |
touch screen | Delta | Taiwan, China |
Servo system | Delta / Wing Hong/ | Taiwan, China |

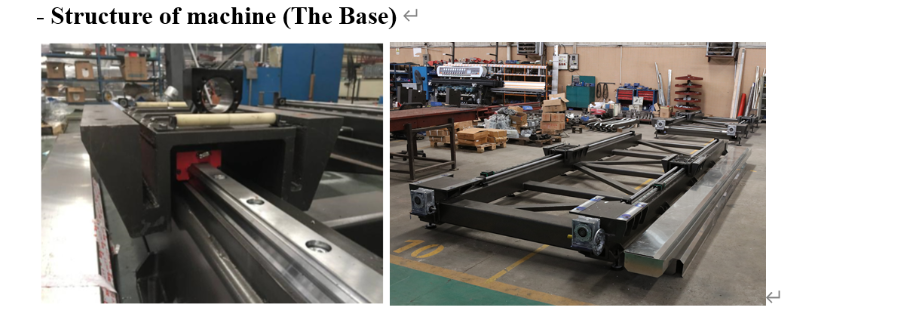

- SM10 glass edging machine double line beam in 20mm steel, thick base to keep glass transfer smoothly, reliable use.CNCmachinig ←

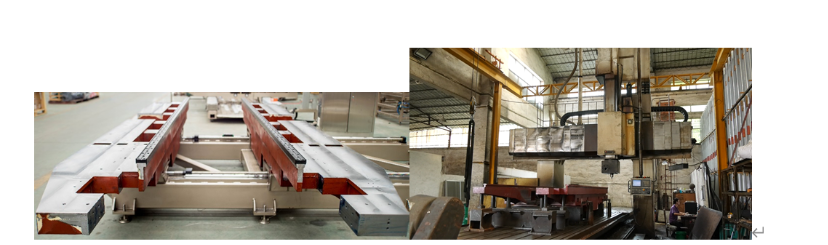

Transmission beam with $CM solid steel, and with stress relief heat treatment. Multi point fixed, tokeep transfer smoothly and will never change←
SM10 glass edging machine double line W shape support bracket: The bracket of movable site system uses “W" frame design to increase the accuracyand stability, also it can extend the lifetime of the linear rack significantly, reducing the intervals of downtime..
SM10 glass straight line double edging machine main gear box shaft sleeve adopts through sleeve structure, using high precision roller bearings, stable and reliable operation, long service life, reduce maintenance cost. Servo motor transmission is also available for option.
1. SM10 glass polishing machine Standard Model: High performance ABB motors first one adopts 3kw. Inside of the sliding part adopt the bronze nut work with adjustment screw rod to reduce the gap, more flexible and durable.
2. SM10 glass polishing machine Mechanical (belt) transmission: with 4200rpm mechanical transmission by belt driven. Spindles shaft rotation at 4200rpm/min. The shaft can tolerant up to 12000rpm/min maximum, however, only using 1/3 of total speed capacity. The processing speed is upon 15m/min with polishing. Grinding ability has improved
3.SM10 glass polishing machine Mechanical (belt) transmission with Servo driven In-feed arrangement: Fully automatic wheel adjustment. Precise calculation between wheel and material. Avoiding uneven grinding caused by human error. Stepping into the next automation level.
Enkongs Jiangmen branch, (JIANGMEN ENKONGS INTELLIGENT TECHNOLOGY CO., LTD.), second branch workshop opened in May 2021, Enkongs Jiangmen branch is specializing product development and machine processing. developing client’s expectation in higher standard to Ekongs automatic double glass processing machine. Looking forward to deliver the best serive and quility to you.
