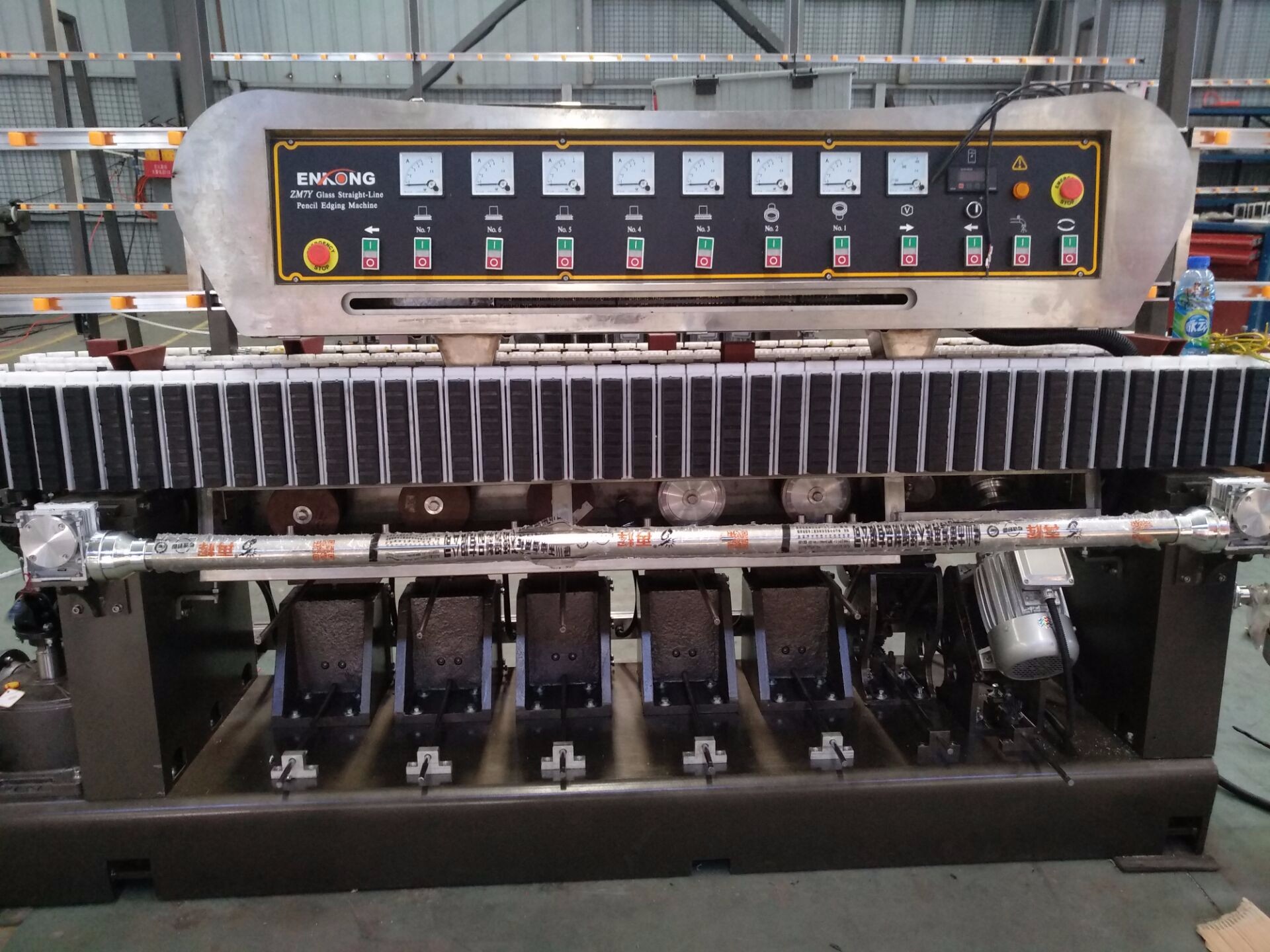

ZM7Y Glass Straight-line Pencil Edging Machine

Brand :ENKONG&ENKONGS

Product origin :MADE IN CHINA

Delivery time :30DAYS AFTER DEPOSIT

Supply capacity :30SETS/MONTH

Packing method :IRON PALLET AND FOAM PACKAGING

Payment item :T/T OR L/C AT SIGHT

Quality standard :SGS,CE

Guarantee :GUARANTEE 14 MONTHS AFTER DELIVERY

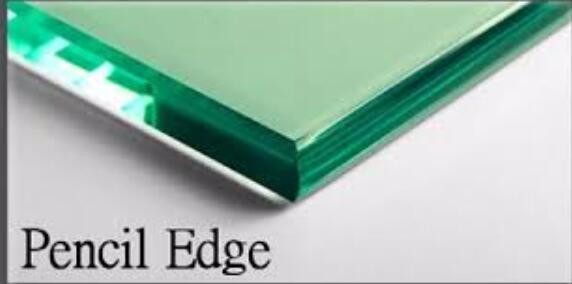

1. ZM7Y glass pencil edging machine can process pencil, OG,C-edger and flat edges of different glass thickness with different shape wheels.

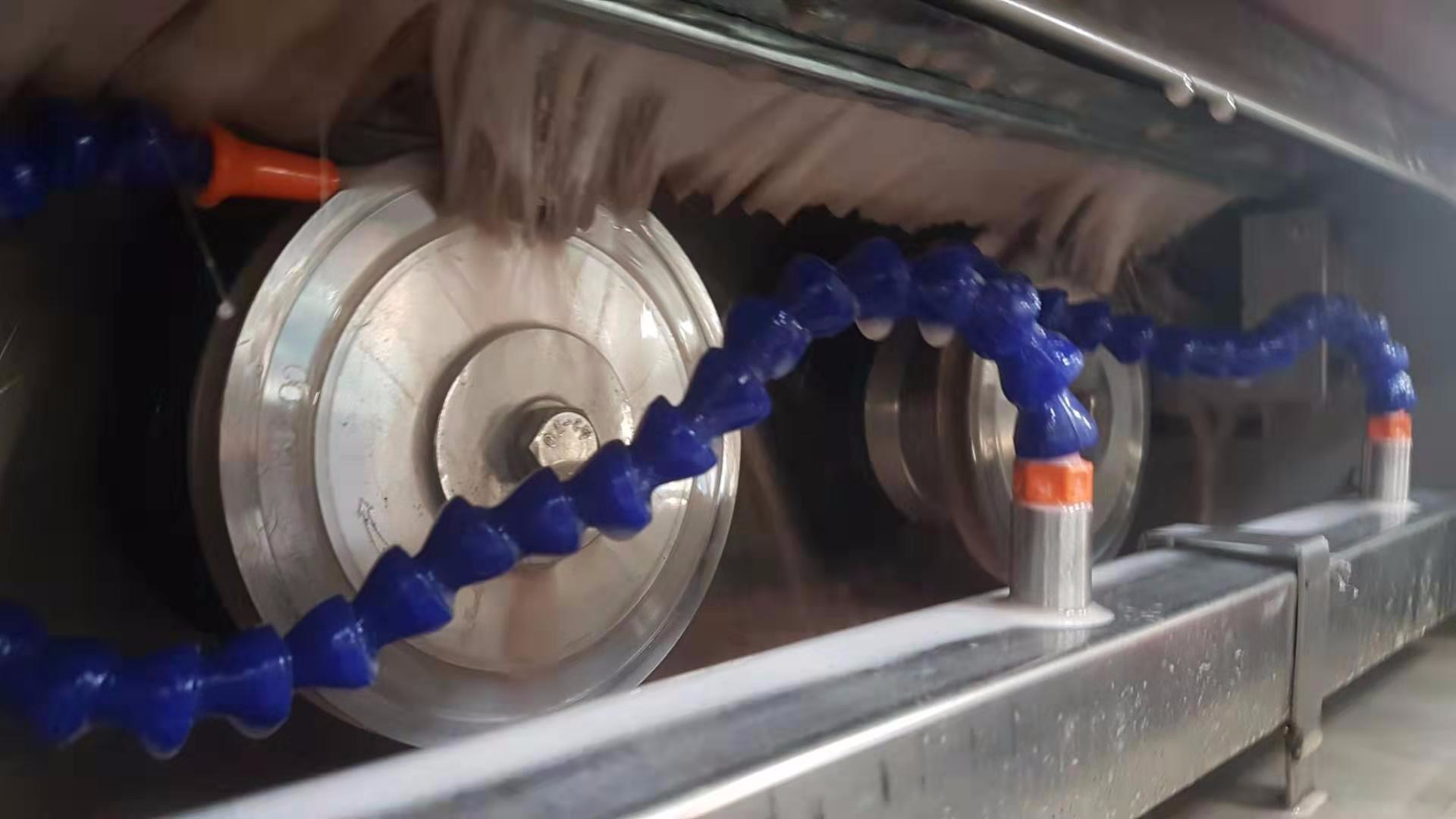

2. Rough grinding, fine grinding and polishing of the pencil edge can be finished at one time.
3. Same thickness of glass sheet can be process continually.
4. The brightness of pencil edge will be close to the original glass after polished.
5. This machine is easy to operate and has good performance.
6. This machine is adopting digital display.

1. Technical Specifications:

1. Processing glass thickness : 3~19mm

2. Min.size processing glass: 80mm×80mm

3. Processing speed: 0.5~4.5m/min

4. Installation power: 13.6KW

5. Occupation land: 6.6m(length)×1.1m(width)

6. Dimension: 3.6m (length) ×0.9m (width) ×1.5m (height)

7. Power depends on requirement

8. Weight: 3500KGS

10. Stainless steel water tank

11. The infeed and outfeed adopts Timing belt to convey.
