XM371 Glass Straight-line Beveling Machine with 11 spindles
Brand :ENKONG&ENKONGS
Product origin :MADE IN CHINA
Delivery time :30DAYS AFTER DEPOSIT
Supply capacity :30SETS/MONTH
Packing method :IRON PALLET AND FOAM PACKAGING
Payment item :T/T OR L/C AT SIGHT
Quality standard :SGS,CE
Guarantee :GUARANTEE 14 MONTHS AFTER DELIVERY
Adopt reinforcement design to prevent beam deformation with 15mm steel plate.
Disassemble water tank, maintenance friendly.
Grinding head water tank is stamped and formed, without welding, without cracks, and the surface is smooth.

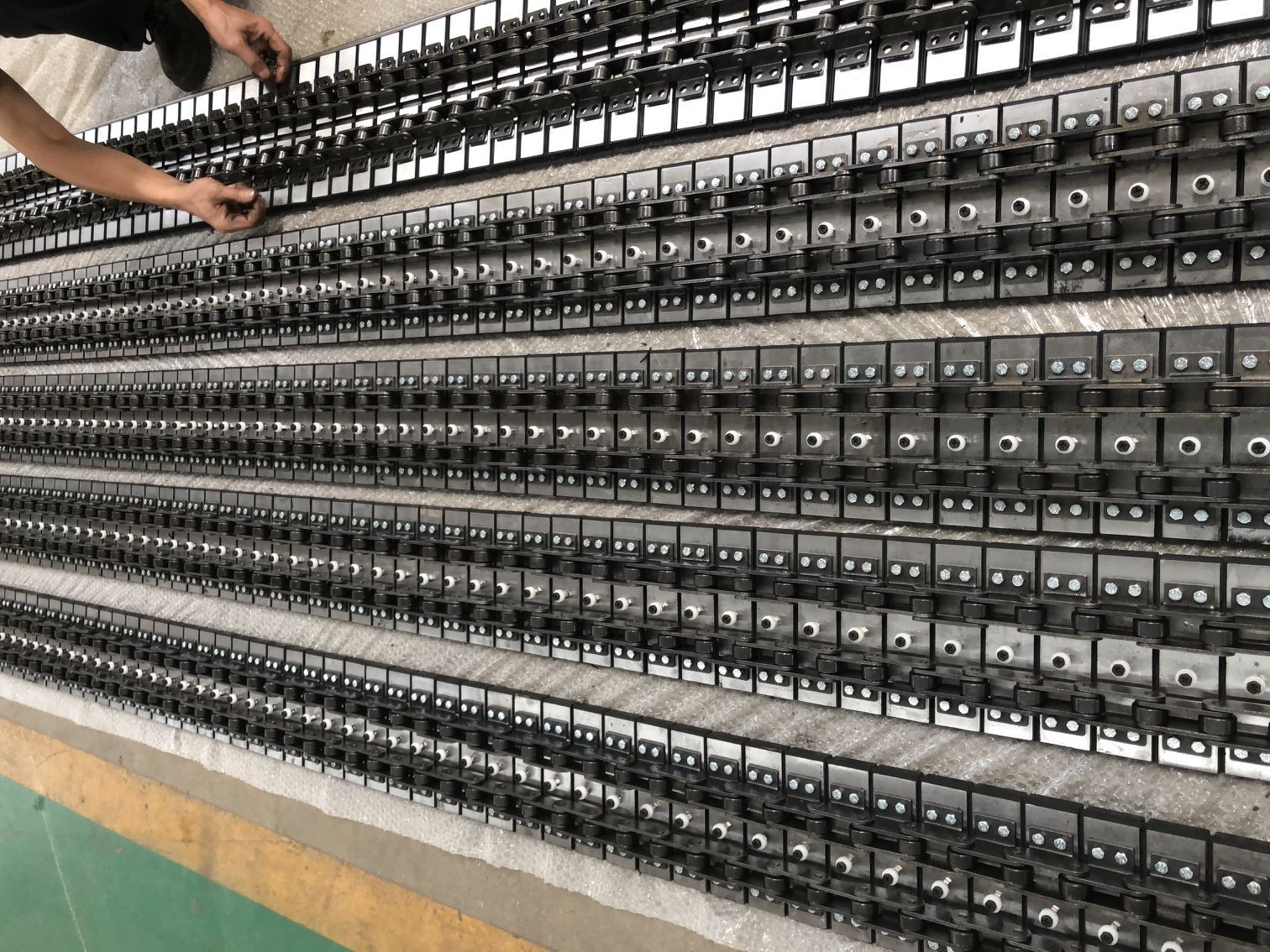

35mm chain adopted on conveyor pad section.
Lubrication tube distributes fully on the conveyor system, swaying system and spindles carriage.
Encoder and switch located away from the water sources, prolong lifespan.
ABB specialize water proof motor.
Auto stirrer equipped with cerium tank.
Technical Date:
Spindles: 11 pcs
Processing glass thickness: 3-19mm
Bevel angle: 3~45°
Bevel width: 40mm
Min.size of glass: 120mm×120mm
Processing speed: 0.8~4.1m/min
Dimension: 8300×1400×2500mm
Power: 24.7KW
Weight: 440 kg
Operation Condition:
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
Wheels Disposal
10 spindles for the bevel.
1 spindles for bottom.
★ Products order can be made according to customer’s request. Our company reserves the
right to renew and revise as well as cease the technology depending on design requirements.
