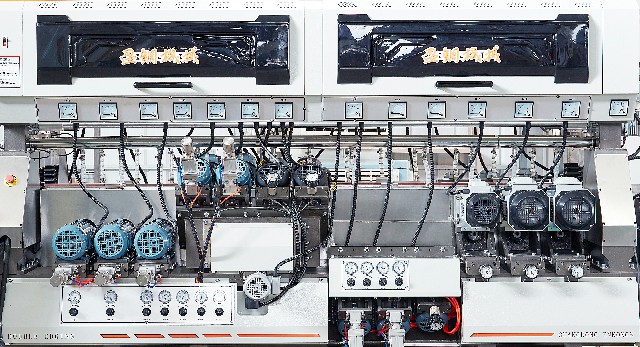

SM2420 Glass Straight-line Double Edging Machine

Brand :ENKONG&ENKONGS

Product origin :MADE IN CHINA

Delivery time :30DAYS AFTER DEPOSIT

Supply capacity :30SETS/MONTH

Packing method :IRON PALLET AND FOAM PACKAGING

Payment item :T/T OR L/C AT SIGHT

Quality standard :SGS,CE

Guarantee :GUARANTEE 14 MONTHS AFTER DELIVERY

Safety feature such as safety rope protection mechanism can be find in the machine to protect the operator and maintenance personnel.
The whole line has compact structure, stable and reliable performance, high degree of automation, and high production efficiency.

The edging production line is beginning on 1# edging machine, and the transfer table is automatically turned to the long side of the 2# grinding machine. The processing speed is 1-15m/min.


glass machinery


Technical Data:

Number of Spindles: 24

Max. glass dimension: Up to 4200(option: Jumbo Glass Size can be customize)

Min. glass size: 300x300 (option: 250x250)

Glass thickness: 3~25 mm

Working Speed: 1-15m/min

Width adjustment Speed: 4m/min (optional:8m/min)

Max. edge grinding: 3mm

Tolerance of the diagonal(1000x1000): ±0.5mm

Tolerance on the parallelism(mm): ±0.2mm

Arris width:1-5mm

Total power: about 65KW


Operation Condition:

Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%

Environment: Temperature: 1~40℃

★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.



1. Motor configuration:

- Conveyor motor: variable frequency motor 2.2KW

- Roller conveyor motor 1: variable frequency motor 1.5KW

- Roller conveyor motor 2: variable frequency motor 1.5KW


2. Technical parameters:

1

Minimum size of the transfer glass:

350mm * 350mm

2

Maximum size of the transfer glass

2500mm * 1500mm

3

Thickness of the transfer glass

3-25mm

4

Total power

5.2KW

5

Dimensions

8100mm * 2900mm * 1000mm

Remark: When the size of the transfer glass changes, the external dimensions change accordingly.
