SM10 Glass 2015 Straight-line Double Sides Seaming Processing line
Brand :ENKONG&ENKONGS
Product origin :MADE IN CHINA
Delivery time :30DAYS AFTER DEPOSIT
Supply capacity :30SETS/MONTH
Packing method :IRON PALLET AND FOAM PACKAGING
Payment item :T/T OR L/C AT SIGHT
Quality standard :SGS,CE
Guarantee :GUARANTEE 14 MONTHS AFTER DELIVERY
PLC control system to set the processing parameters through the monitor interface to complete the processing at one time. The stable and solid base structure contribute to precise and fast width adjustment system.
Basic Configuration:
1. Ball screw（Width adjustment）: Taiwan HINWIN/TBI/PMI
2. Linear guide: Taiwan HINWIN/TBI/PMI
3. base, movable & fixed bridge, conveyor plate: high-quality steel plate welding after heat treatment finishing
4. Water tank material: Stainless steel SUS201
5.Timing belt: Megadyne,Italy
6. Operation: PLC + touch screen control. Fully automatic PLC computer control, touch screen user friendly interface, easy to operate.
Electrical Parts:
Item | Manufacture | Origin |
Low-Voltage apparatus | Schneider | France |
button | Takahashi | CHINA |
Inverter | Delta | Taiwan, China |
transformer | erbian | China |
Encoder | Koyo | Japan |
PLC | Delta / Wing Hong | Taiwan, China |
touch screen | Delta | Taiwan, China |
Servo system | Delta / Wing Hong/ | Taiwan, China |
The main gear box shaft sleeve adopts through sleeve structure, using high precision roller bearings, stable and reliable operation, long service life, reduce maintenance cost. Servo motor transmission is also available for option.

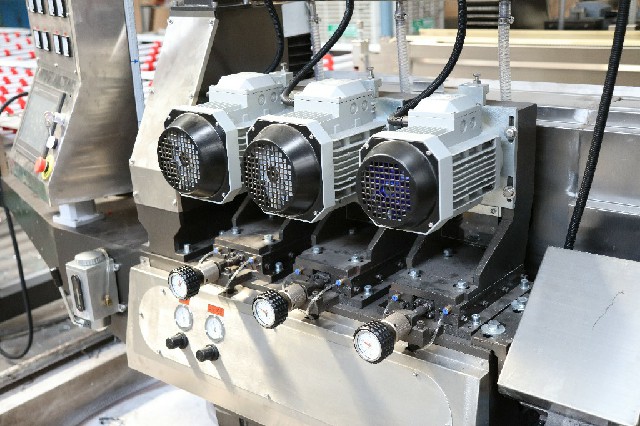

1. Standard Model: High performance ABB motors first one adopts 3kw. Inside of the sliding part adopt the bronze nut work with adjustment screw rod to reduce the gap, more flexible and durable.
2. Mechanical (belt) transmission: with 4200rpm mechanical transmission by belt driven. Spindles shaft rotation at 4200rpm/min. The shaft can tolerant up to 12000rpm/min maximum, however, only using 1/3 of total speed capacity. The processing speed is upon 15m/min with polishing. Grinding ability has improved
3. Mechanical (belt) transmission with Servo driven In-feed arrangement: Fully automatic wheel adjustment. Precise calculation between wheel and material. Avoiding uneven grinding caused by human error. Stepping into the next automation level.
