SM10 Glass 1010 Straight-line Double Sides Seaming Processing Line For Construction Glass

  • ENKONG&ENKONGS
  • MADE IN CHINA
  • 30DAYS AFTER DEPOSIT
  • 30SETS/MONTH
  • IRON PALLET AND FOAM PACKAGING
  • T/T OR L/C AT SIGHT
  • SGS,CE
  • GUARANTEE 14 MONTHS AFTER DELIVERY
General Information: 1. The main transmission adopted timing belt (Italian branded) and is equipped with variable frequency motor speed control. 2. Under modular design concept, the double straight edge machine can be equipped with enhanced polishing and low e deletion devices. 3. The polishing spindles can be selected pneumatic polishing or automatic feeding polish which improving the polishing quality and reduce the labor intensity of workers. 4.It can be paired with production lines such as lamination, printing and tempering.

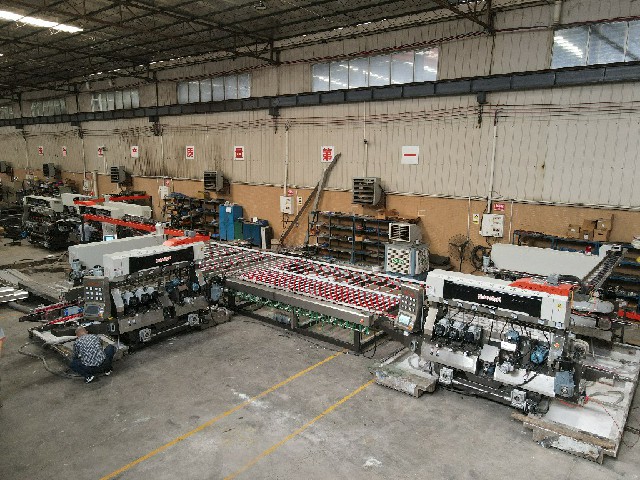

- SM10 Series L Glass Double Seaming Processing Line:


Section

Model

QTY

Info.

1

Glass Straight Line Double Edging Machine

SM 1025

1 SET

2.5 -meter glass edger

5 spindles + 1

2

Transfer table (L type)

SZL2515

1 SET

Conveyor from #1 to #2

3

Glass Straight Line Double Edging Machine

SM 1015

1 SET

1.5-meter glass edger

5 spindles + 1

Remarks: The last two spindle motor can be optionally equipped with optional low e deletion device or enhanced polishing with extra CE-3.




Basic Configuration:

1. Ball screw(Width adjustment): Taiwan HINWIN/TBI/PMI

2. Linear guide: Taiwan HINWIN/TBI/PMI

3. base, movable & fixed bridge, conveyor plate: high-quality steel plate welding after heat treatment finishing

4. Water tank material: Stainless steel SUS201

5.Timing belt: Megadyne,Italy

6. Operation: PLC + touch screen control. Fully automatic PLC computer control, touch screen user friendly interface, easy to operate.



Electrical Parts:

Item

Manufacture

Origin

Low-Voltage apparatus

Schneider

France

button

Takahashi

CHINA

Inverter

Delta

Taiwan, China

transformer

erbian

China

Encoder

Koyo

Japan

PLC

Delta / Wing Hong

Taiwan, China

touch screen

Delta

Taiwan, China

Servo system

Delta / Wing Hong/

Taiwan, China



Annex
