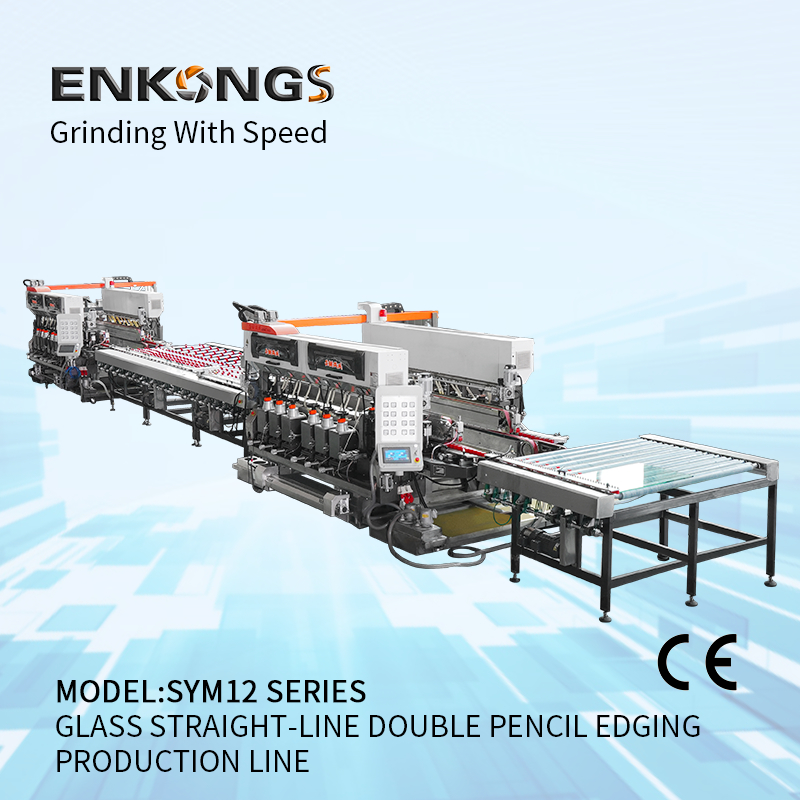

SM12 Series Glasss Straight-line Pencil Edging Machine

Brand :ENKONG&ENKONGS

Product origin :MADE IN CHINA

Delivery time :30DAYS AFTER DEPOSIT

Supply capacity :30SETS/MONTH

Packing method :IRON PALLET AND FOAM PACKAGING

Payment item :T/T OR L/C AT SIGHT

Quality standard :SGS,CE

Guarantee :GUARANTEE 14 MONTHS AFTER DELIVERY

3-12 mm Glass Double C-edge grinding machine, it professional double pencil (C)edger with furniture glass with polishing.

Advantage:

1. the machine with arris (upper&lower) grinding .it is very good when process thick glasses.

2. It will be easy for NO.3-NO.6. grinding C edge and polishing.The processing speed will be improving.

2. Capacity enhancement

3. optimize machine performance with good polishing

4. professional double pencil edger with furniture glass with polishing.

5. Each side with 8 pcs of grinding wheels

6. the No.1-2 for arrises grinding

7. The machine with PLC Control

8. The machine with centralized control



Guangdong enkongs machinery co.,ltd.  is an professional manufacture of glass machines for 15years. .After grinding the glasses used in kitchen cabinets, drawers, bathroom cabinets, shower cabins, furniture, table tops, counter tops, wall surfacing etc.
We operate for more than a decade in the field of glass machines . We work in a close relationship with our customers through out all over the world.



Feature:

Distinctive modularity , faster installation design, dismantle carry and charge.

the machine can be Upgrade requirements with future needs

with solid lathe and bridge to make sure the stability of machine and also highly processing speed.

With special upper&lower arris grinding device. That will be extend the service life of diamond wheels and polishing wheel. And processing speed will be improve.

With 15years experience for produce glass machine

All the products are manufactured according to ISO9001:2000, to make sure of perfect quality. And also with CE standard for export.


Specification:

Thickness

3mm-12mm

Sizes

Min.100mmx100mm.Max: 1000-4000mm(can be custom-made)

Transmission speed

1-12m/min

Parallel tolerance

≤0.25mm/m

Diagonal tolerance

≤0.25mm/m

Max.grinding removal of flat edge for each side

3mm

Width opening speed

2m/min(standard)/8m/min(Servo motor for main transmission)

Processing for main transmission

1-15m/min

Rotation for motor

2800rpm&1400rpm

Configuration specification



1. Ball screw:Taiwan HINWIN/PMI/TBI

2. Linear guide rail:Taiwan HINWIN/PMI/TBI

3. The base, beam, feeding plate using welded high-quality steel plate. Those parts also via the heating treatment.

4. Using stainless steel water tank.

5. Italy timing belt

6. The main electric parts using Delta / Mitsubishi / KICO/Schneider.


Other items:

Delivery Time

30days after received deposit

Packing Details

Iron pallet with Packaging film

Usage

Furniture glass( kitchen cabinets, drawers, bathroom cabinets, shower cabins, furniture, table tops, counter tops, wall surfacing)

Payment

30% as deposit , the 70% should be paid before shipment

Quality Standard

SGS,CE( CAS,UL can do with request and extra fee)

Guarantee

14Months after delivery



Configuration specification:

1. Ball screw:Taiwan HINWIN/PMI/TBI

2. Linear guide rail:Taiwan HINWIN/PMI/TBI

3. The base, beam, feeding plate using welded high-quality steel plate. Those parts also via the heating treatment.

4. Using stainless steel water tank.

5. Italy timing belt

6. The main electric parts using Delta / Mitsubishi / KICO/Schneider.


Different edge types available:
Seamed C Edge:only use No.1-NO.4 diamond wheels

C-edge with polishing:No.1-No.8 wheels for grinding and polishing.


Application:

1. All-glass structural facades and interior furniture;

2. Windows and doors;

3. Interior applications for decorations;
